PRODUCT PROPERTIES SHEET

"Wrap-Around End Seal"TM *

"Wrap-Around End Seals" are manufactured by:

Canus International Sales (2003) Inc, 20058 - 92A Avenue, Langley, BC, V1M 3A4, Tel: 604-882-1781

* Patent Pending

SEALS: (ES-100 & ES-200)

- EPDM Rubber

- Casing sizes from 4" to 56"

  (Larger sizes upon request)

- Thickness, 1/8"

- Length, 20"

- Tensile Strength, 1250 PSI

- Durometer, 56 points

- Elongation, 575%

- Heat aged 96 hours @ 70 C (158 F)

- Compression set resistance, 22 hours @ 55 C (120 F), 15%

- Water resistance, volume increase, 48 hours @ 70C (158 F), -4%

- Ozone resistance, no cracks

- Oil immersion, volume increase, 70 hours @ 40 C (158 F), -70%

- Chemical resistance, no weight loss

- Tear strength, 230 PSI

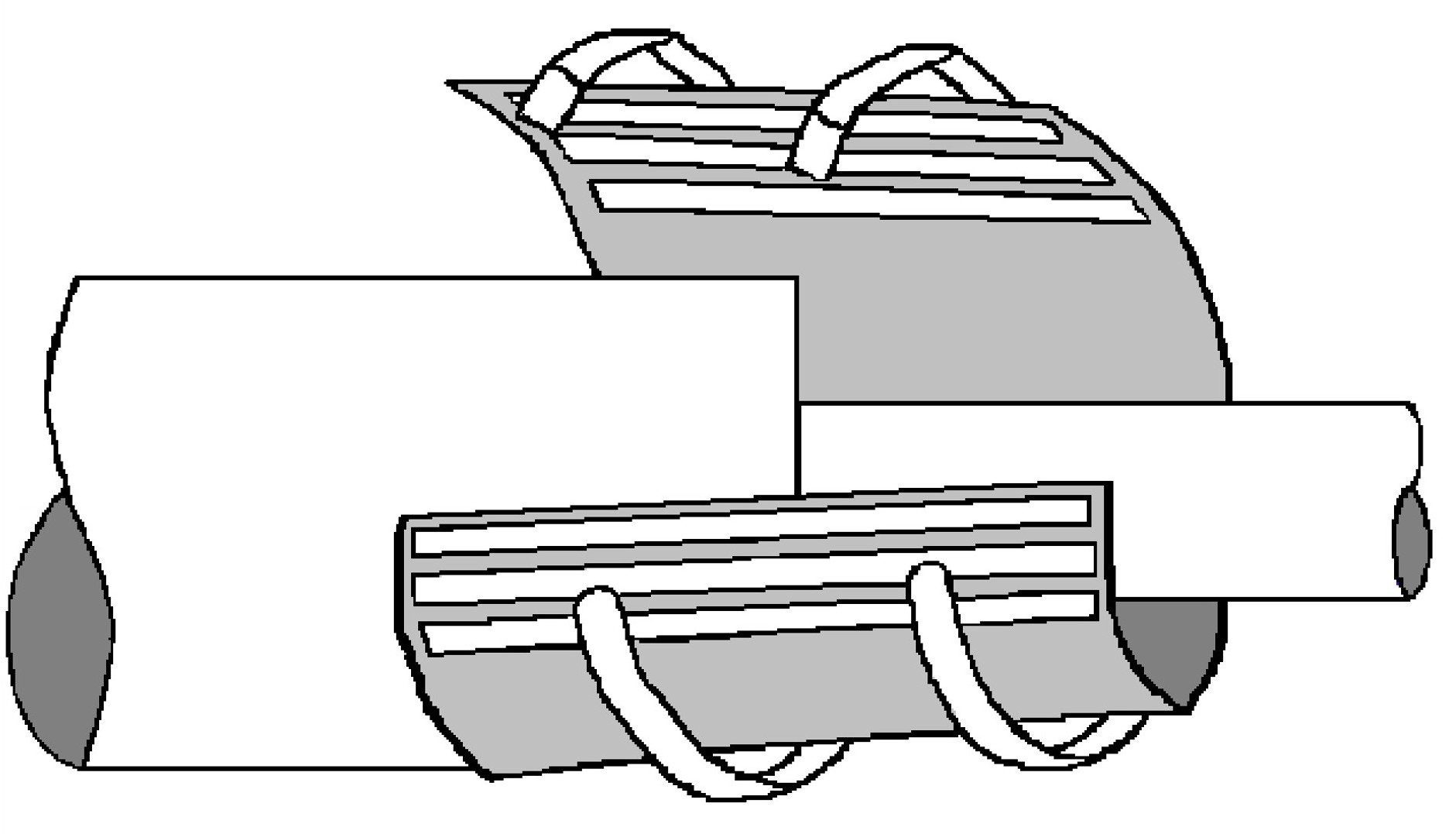

ES-100

-Tensile change, 8%

-Durometer change, -1

-Elongation change, -9%

ADHESIVE STRIPS:

BANDING:

- Fiber reinforced bitumen resin

- Thickness, 60 mils

- Moisture absorption, < 0.2 %

  (ASTM D570-42)

- 304 Stainless steel (AISI 304)

- Yield, 34,833 PSI

- Tensile, 74,165 PSI

- Hardness, HV 160

- 1/2" wide with gear clamp

Ordering Information:

When ordering "Wrap-Around End Seals", please provide the following information:

1. Pipe diameter of casing and carrier.

2. Type of "Wrap-Around End Seals" required; ES-100 or ES-200.

3. Quantity of "Wrap-Around End Seals" required per pipe diameter and type of seal.

4. Please note that "Wrap-Around End Seals" are custom manufactured, and therefore become non returnable once ordered.

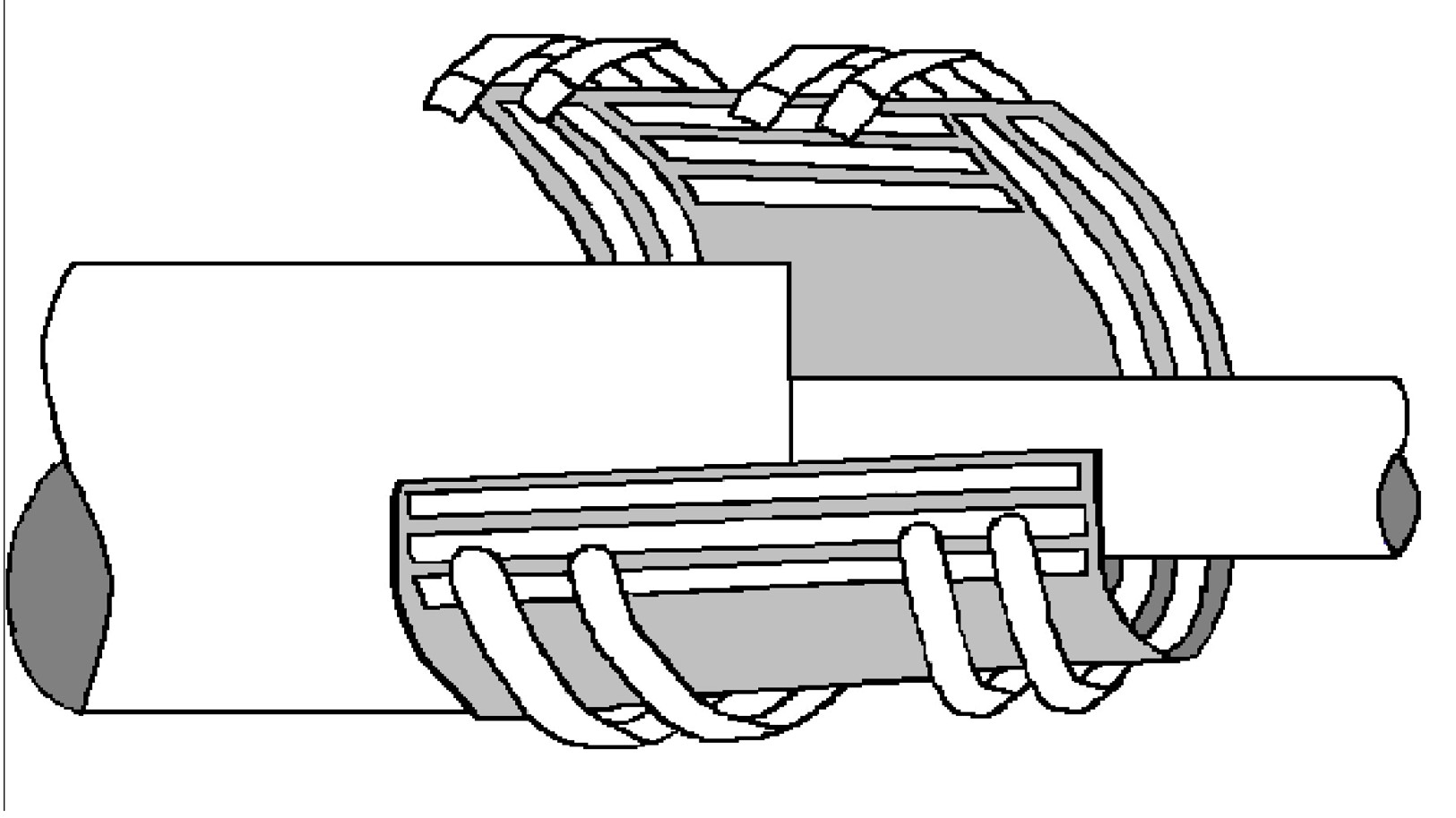

ES-200
