"JointWrap" Cold Applied Joint Sleeves are manufactured exclusively by Canus International Sales (2003) Inc
Step 1:

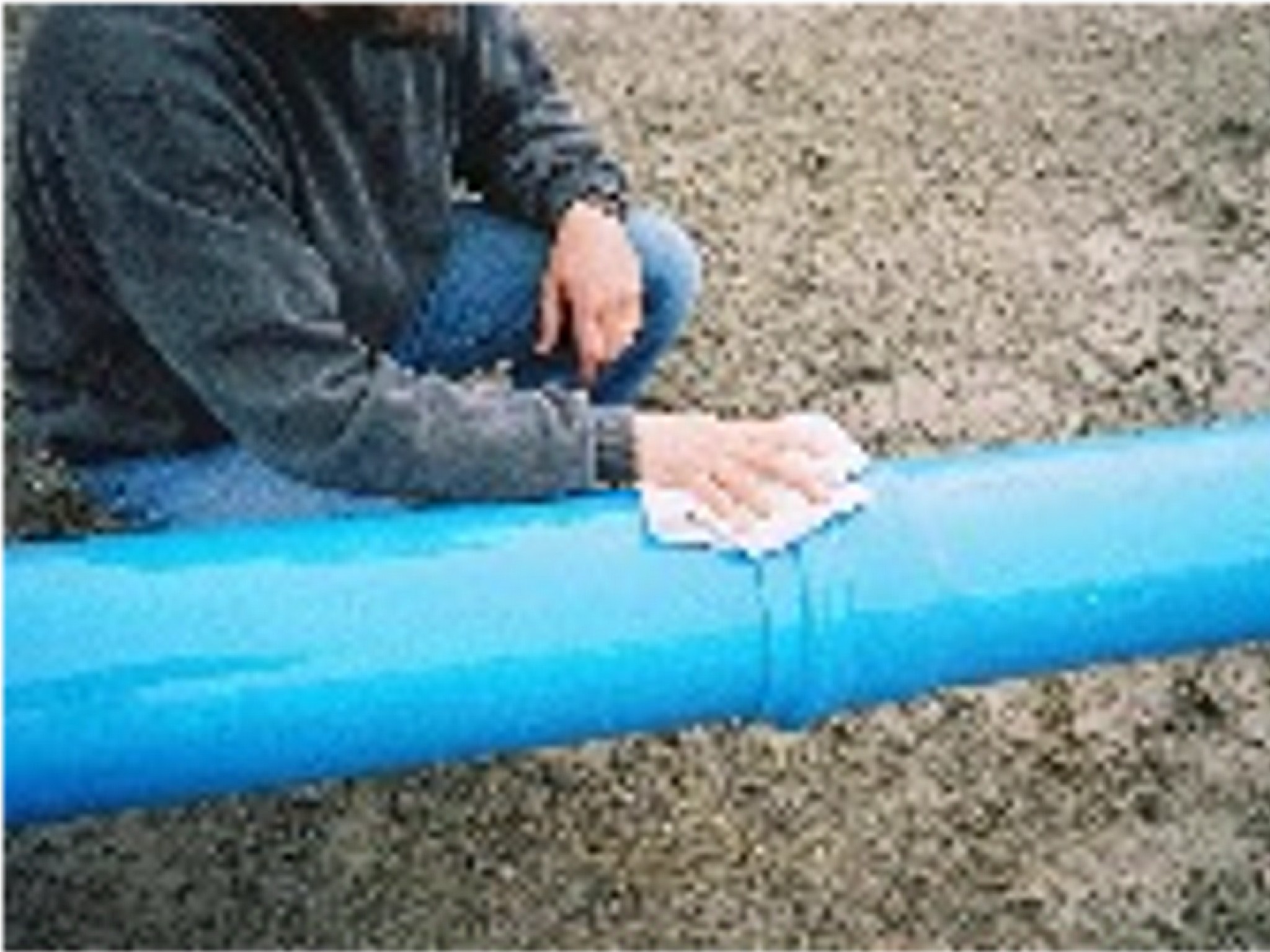

Dry and clean the pipe joint. Ensure all dirt, grease, oils and gasket lubricants have been removed from the area to be wrapped.
Step 3:

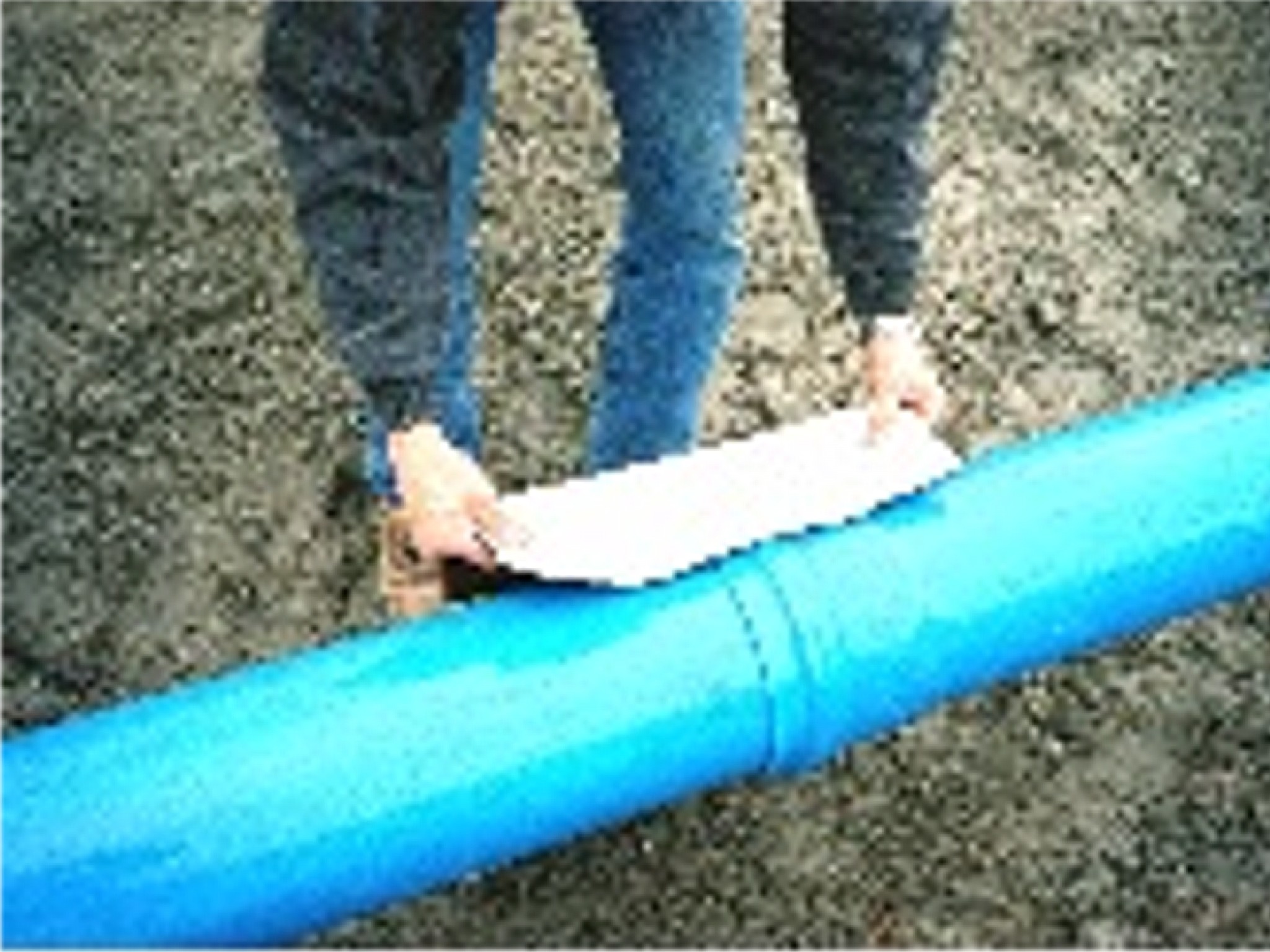

Center the JointWrap over the joint and apply the wrap between the 12 and 2 o'clock positions.
Step 5:

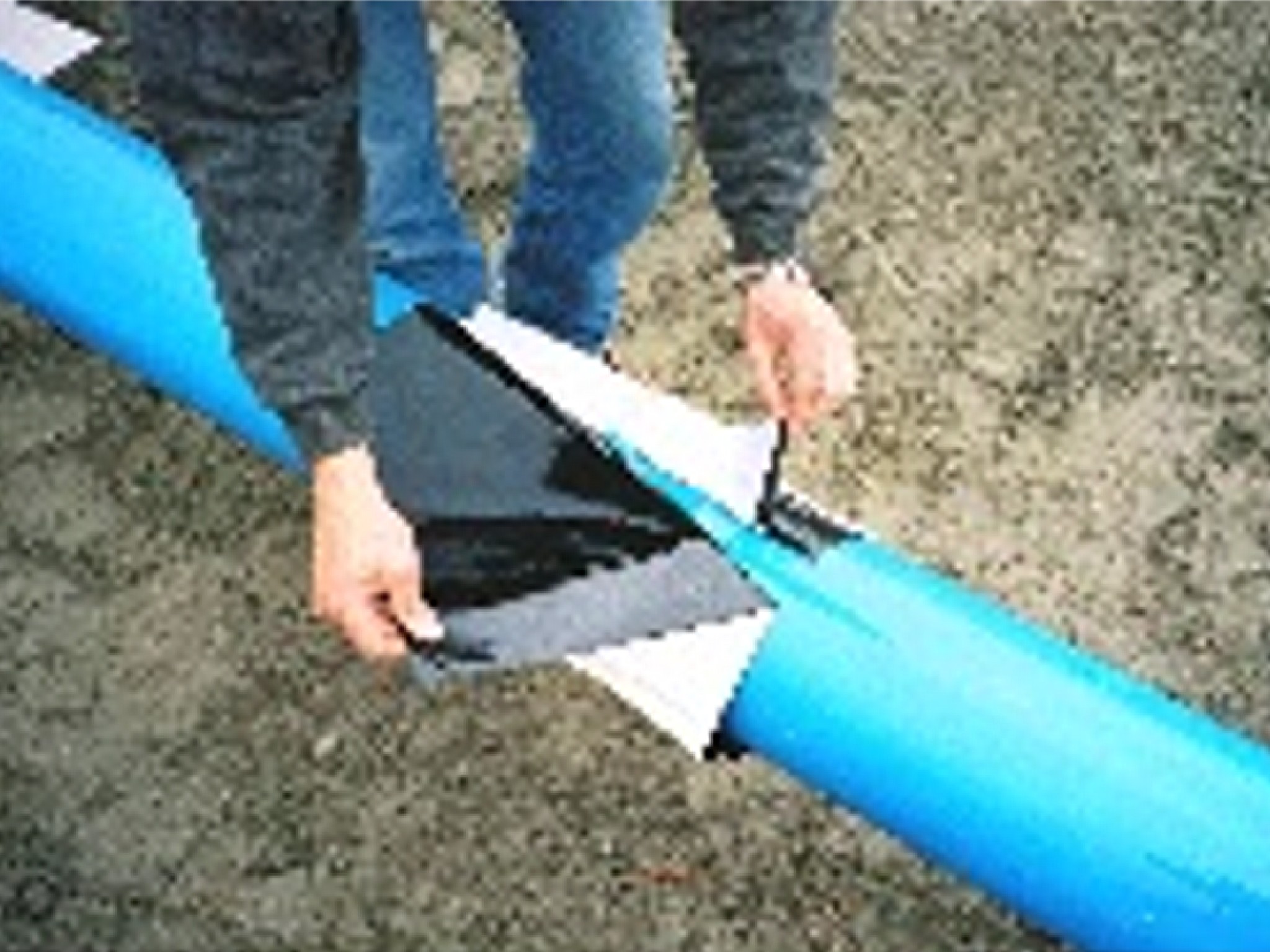

As the wrap is about to overlap onto itself, remove the plastic liner from the "lap-seal" and complete the wrap. Press down across the overlap area.
Step 2:

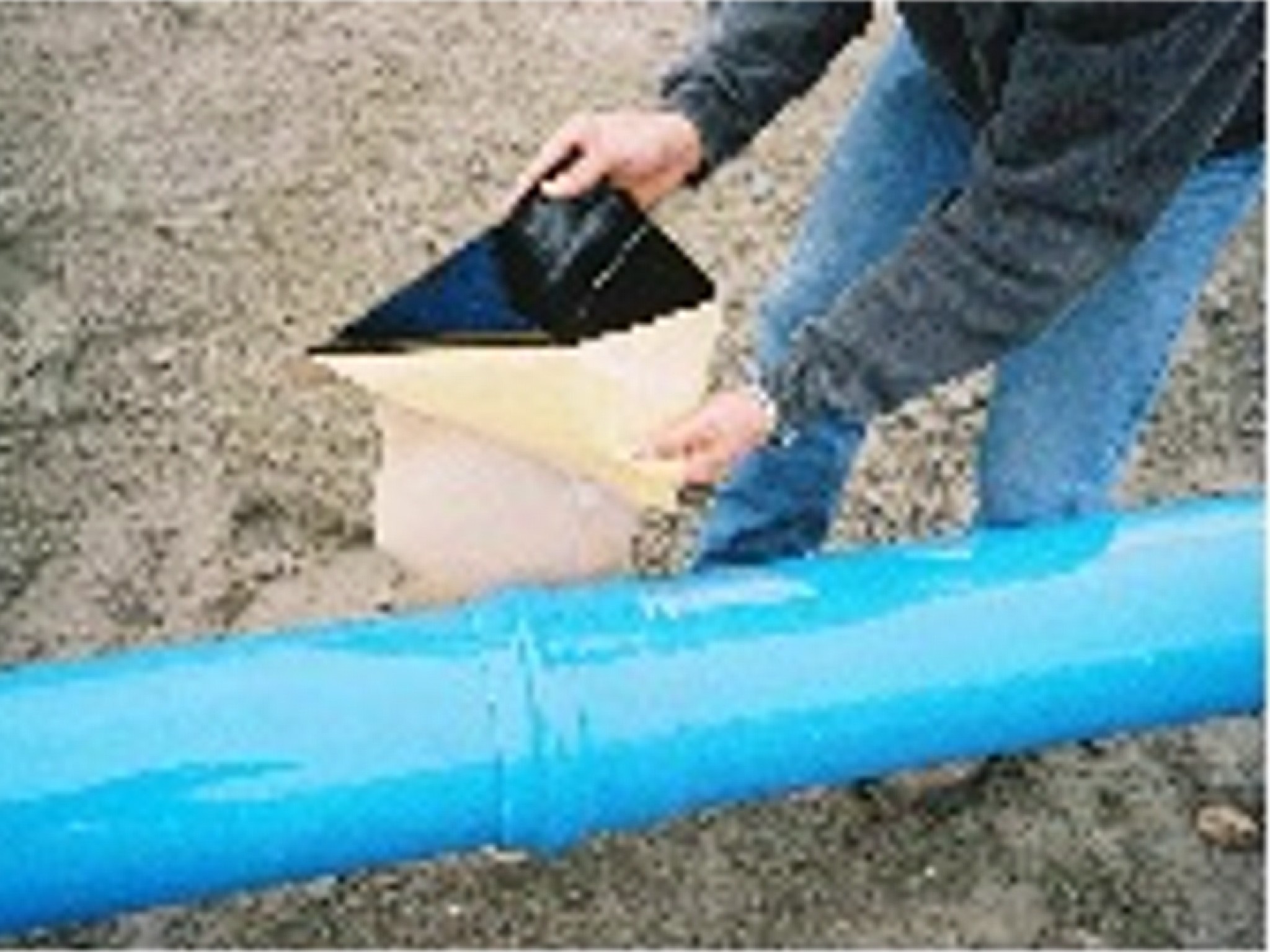

Starting with the "lap-seal" end of the wrap, partially remove the paper release liner from the underside of the JointWrap.
Step 4:

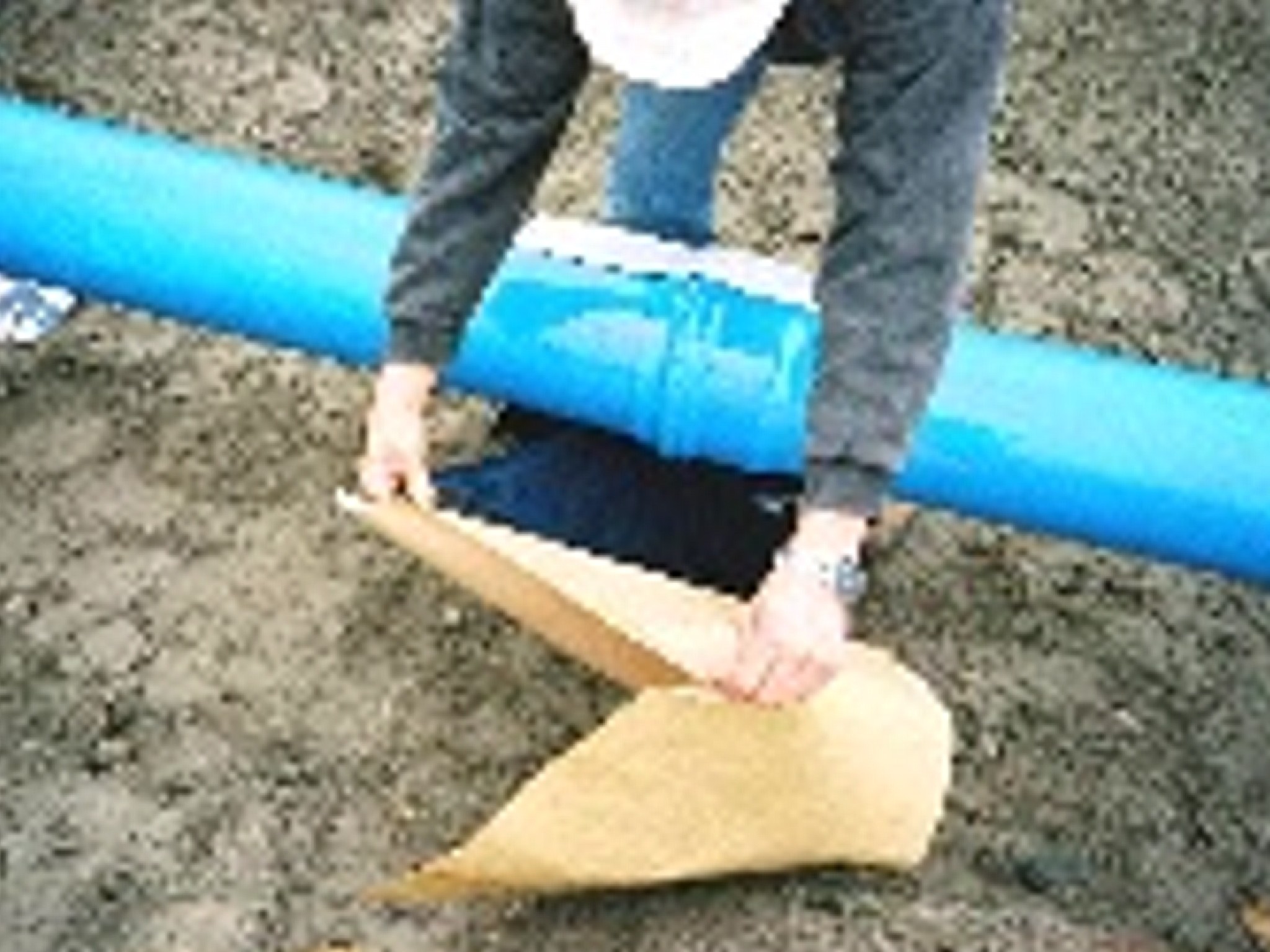

Remove the remainder of the paper release from the underside of the JointWrap as you wrap it around the pipe joint. Pull gently as you wrap to ensure a bond to the pipe surface.
Ordering Information:
When ordering "JointWrap" pipe joint sleeves, please proviide the following information:
1. Pipe diameter, type of pipe, and type of pipe joint (ie: 8" diameter, C900 PVC pipe, standard push-on joints).
2. Width of "JointWrap" required, 18" (450mm) wide or 24" (600mm) wide.
3. Quantity of "JointWrap" sleeves required per pipe diameter and type of pipe.
4. Please note that "JointWrap sleeves are custom manufactured and are non-returnable once ordered.
Step 7:

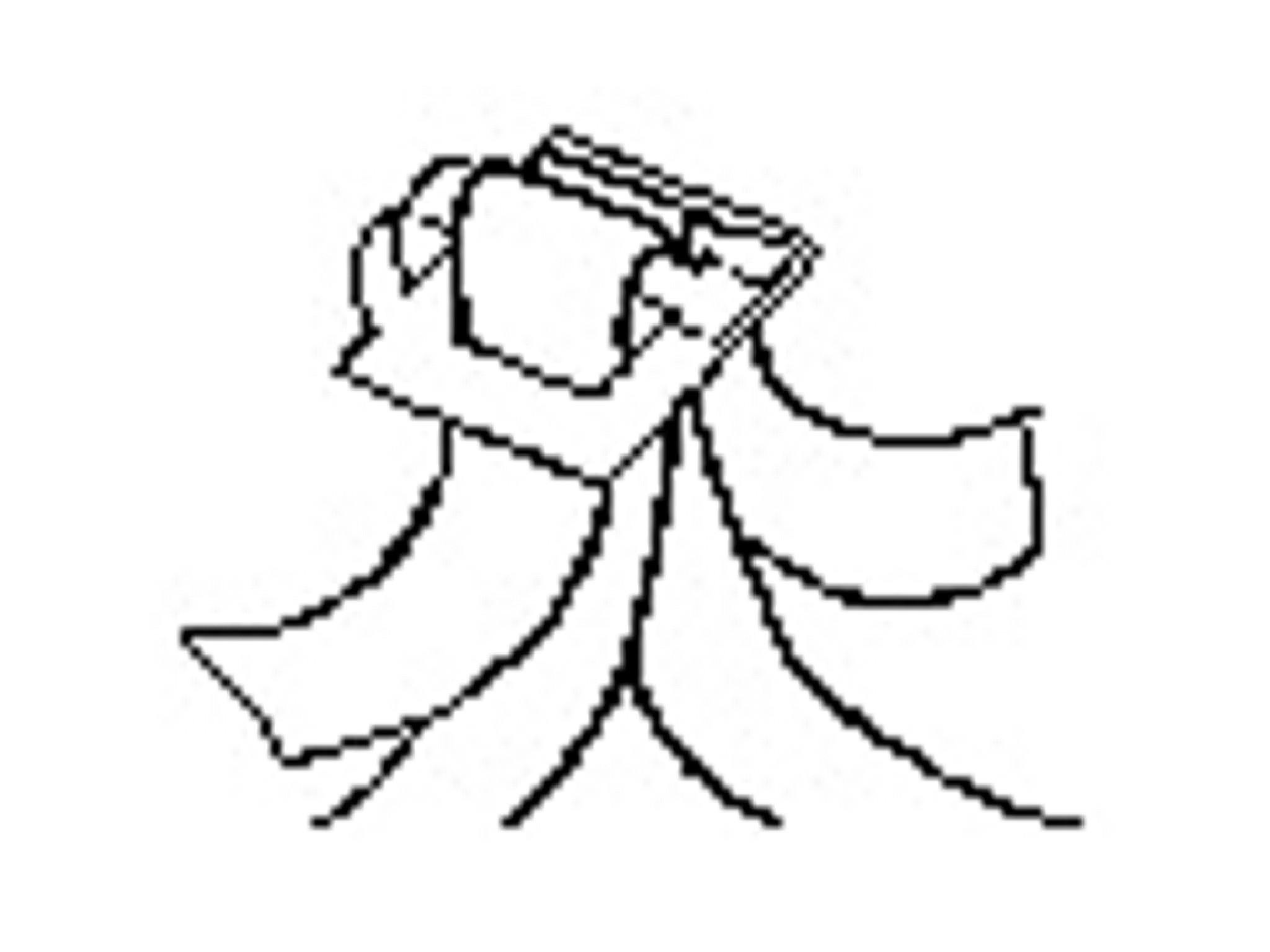

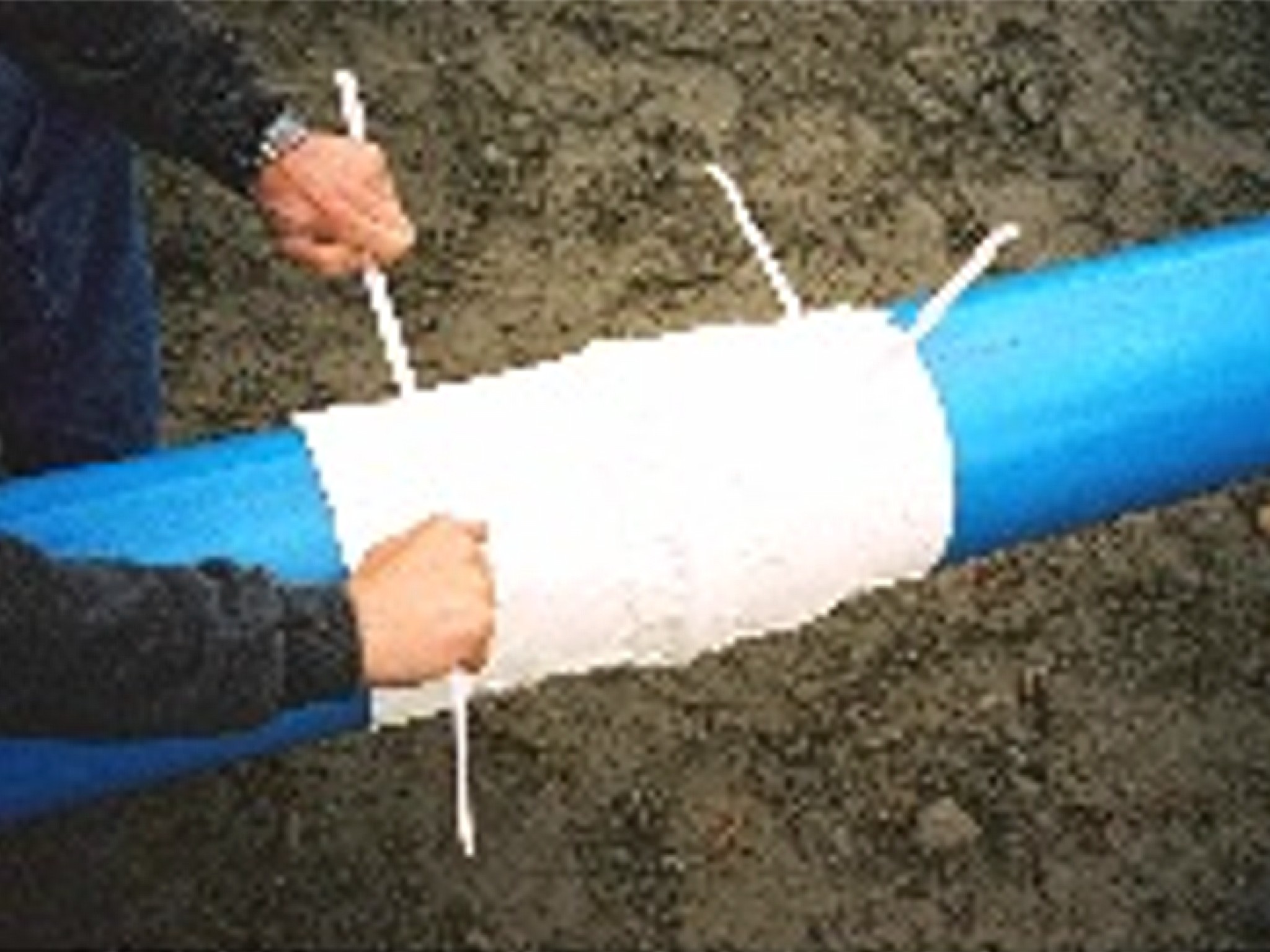

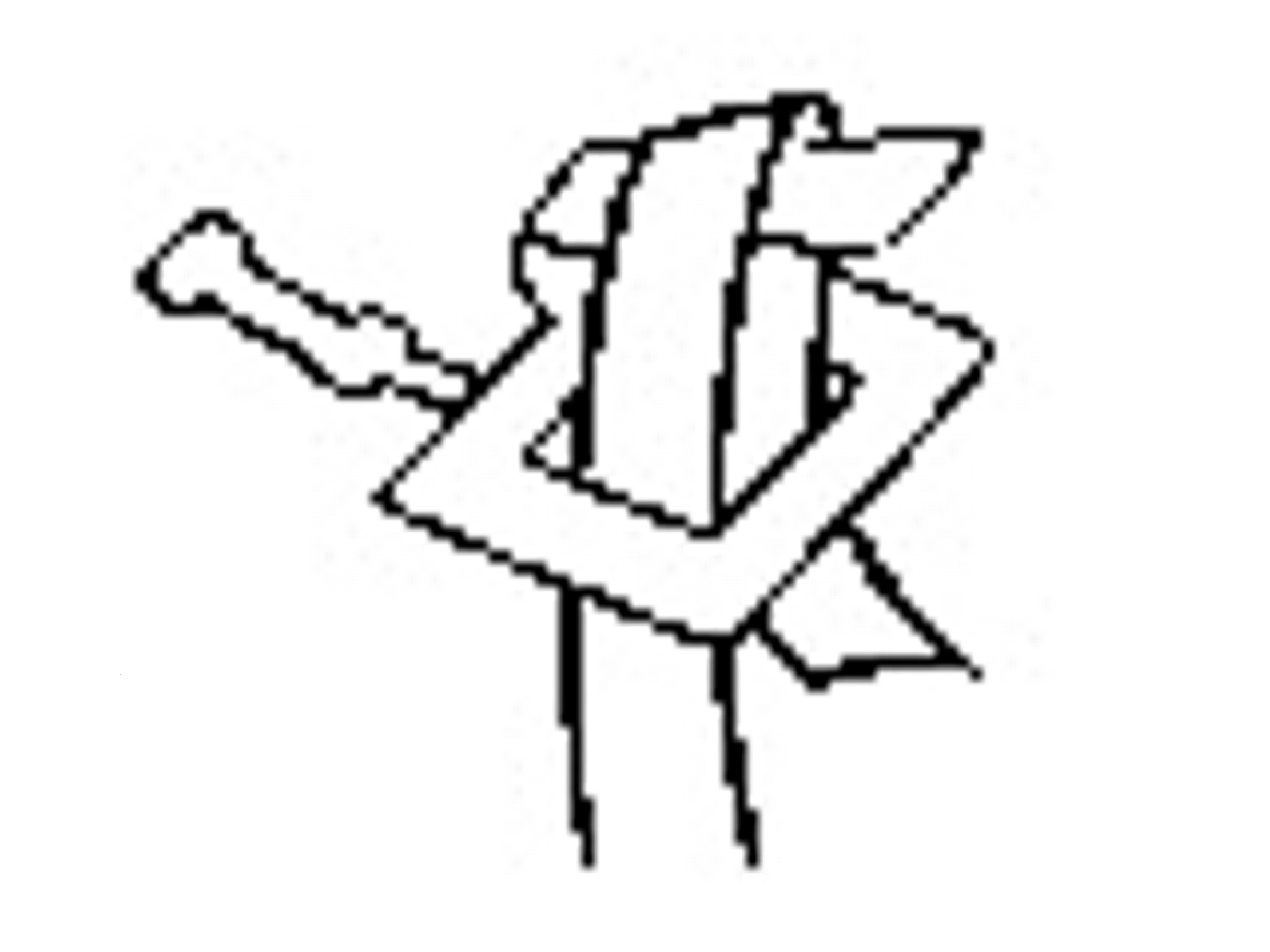

Complete the application by applying one strap at each end of the JointWrap, approximately 2" (50 mm) in from each end. Thread the straps through the buckles as shown in the diagram, pulling them tight on each free end.
Step 6:

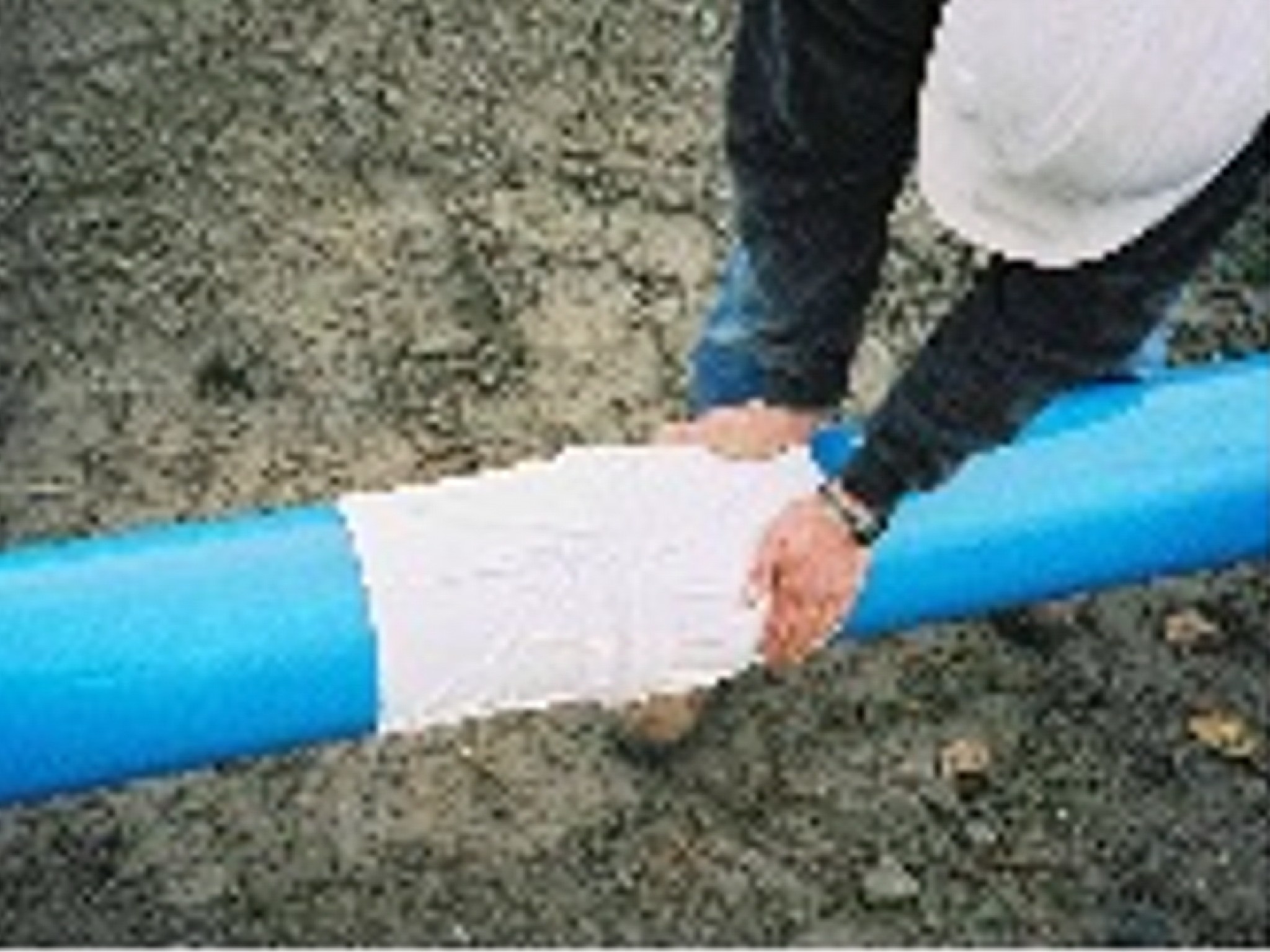

Press down the entire JointWrap to smooth out any major wrinkles.
